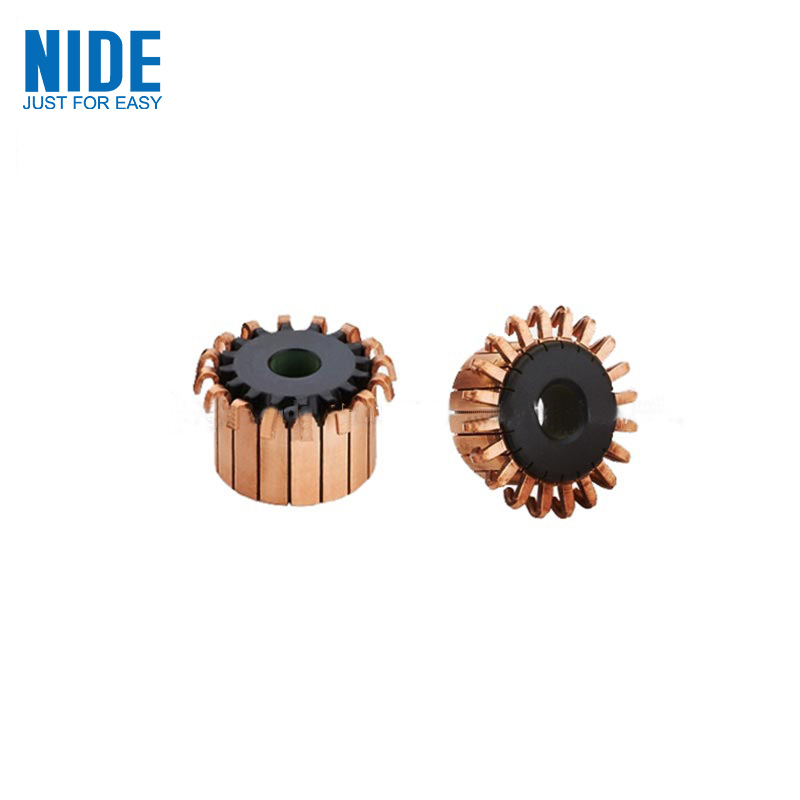

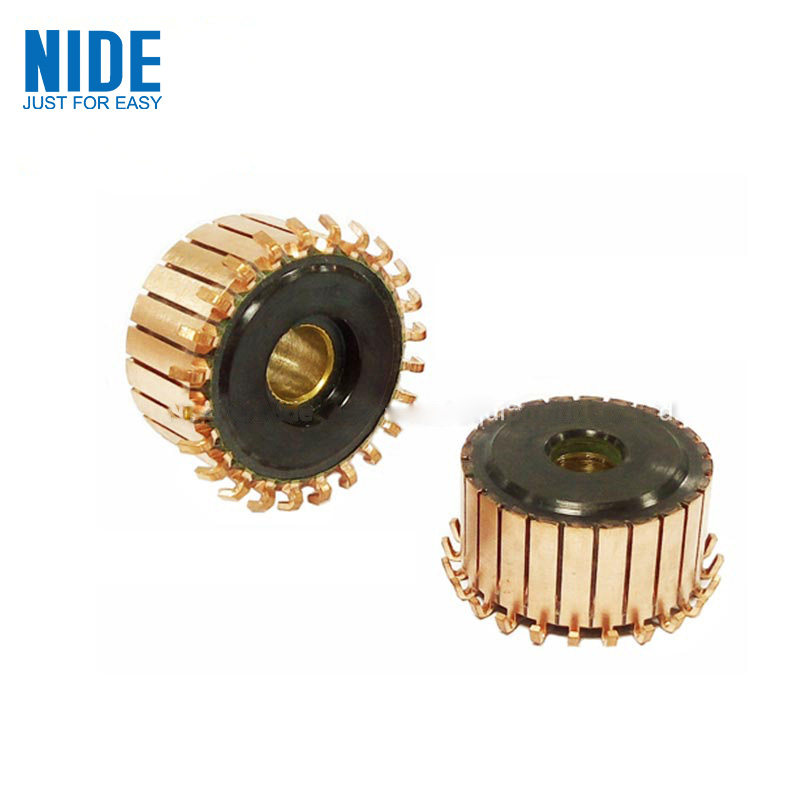

Hook Motor Commutator AC շարժիչի համար

Մաս No.

ՏԱՐՕՐԻՆԱԿ)

I.D (դ)

Կեռիկի բարձրությունը (D1)

Գոտի համարը (N)

Ձողի երկարությունը (L1)

Ընդհանուր երկարություն (L)

JZQC-RS32-01

18.9

8

22.2

24

10.7

12.5

JZQC-RS32-01B

18.9

8

22.8

24

10.7

12.5

JZQC-RS32-01C

18.9

8

22

24

10.7

12.5

JZQC-RS32-01D

19.1

9

22.2

24

10.7

12.5

JZQC-RS32-02

21.5

8

25

24

10.5

12

JZQC-RS32-02B

21.5

8

25

24

10.5

11.9

JZQC-RS31-02C

21.5

8

25

24

10.5

11.9

JZQC-RS32-03

21.5

10

25

24

10.7

12

JZQC-RS31-04

35

12.7

39

32

17.2

18

JZQC-RS32-04B

35

12.7

39

32

17.2

18

JZQC-RS32-05

23.2

8

29.5

12

16.3

18

JZQC-RS32-05B

23.2

8

30

12

16.3

18

JZQC-RS12-06

18.9

9

24.5

12

15.6

17

JZQC-RS12-06B

18.9

8

24.5

12

15.6

17

JZQC-RS32-06C

19.1

8

24.5

12

15.1

17

JZQC-RS12-07

18.9

8

24.5

12

14

15.5

JZQC-RS12-07B

18.9

8

25

12

14

15.5

JZQC-RS12-09

22.5

12

30.8

10

18.5

21

JZQC-RS12-10

22.5

12

30.5

10

19

21

JZQC-RS12-11

22.5

12

30.5

10

19

22.5

JZQC-RS12-12

17.8

9

23

10

14.4

16

JZQC-RS12-12B

17.8

9

23

10

14.4

16

JZQC-RS12-12C

17.8

9

23.5

10

14.4

16

JZQC-RS12-13

22.5

9

30

10

15.9

17.5

JZQC-RS12-14

28.1

14

36.8

12

17.9

20

JZQC-RS12-15

22.6

8

27.5

20

13.7

17.5

JZQC-RS12-16

24.2

12

31.5

12

18.9

20

JZQC-RS12-17

28.2

14

36

12

19.5

21.5

JZQC-RS32-18C

24.1

8

31

12

21.4

23

JZQA-RS12-19

36

14.5

46

19

21

23.5

JZQC-RS12-19B

36

14.5

46

19

21

23.5

JZQC-RS12-19C

36

14

46

19

21

23.5

JZQC-RS12-29

19.1

6

25

12

15.6

17

JZQC-RS12-30

18.9

6

25

12

15.6

17

JZQC-RS12-33

24.1

8

31

14

17

19

JZQC-RS12-34

19

8

24

10

12

13.5
